1. 简介与注意事项

天气研究和预报模型（WRF，发音为“worf”）是一个主要用于数值天气预报（NWP）的高度并行，基于 CPU 的 Fortran 软件包。是 ISC21 中的基准测试应用程序之一。

Fortran 库的兼容性比较差，如果你想尽可能规避问题，可以选择与我相同的版本来完成任务。

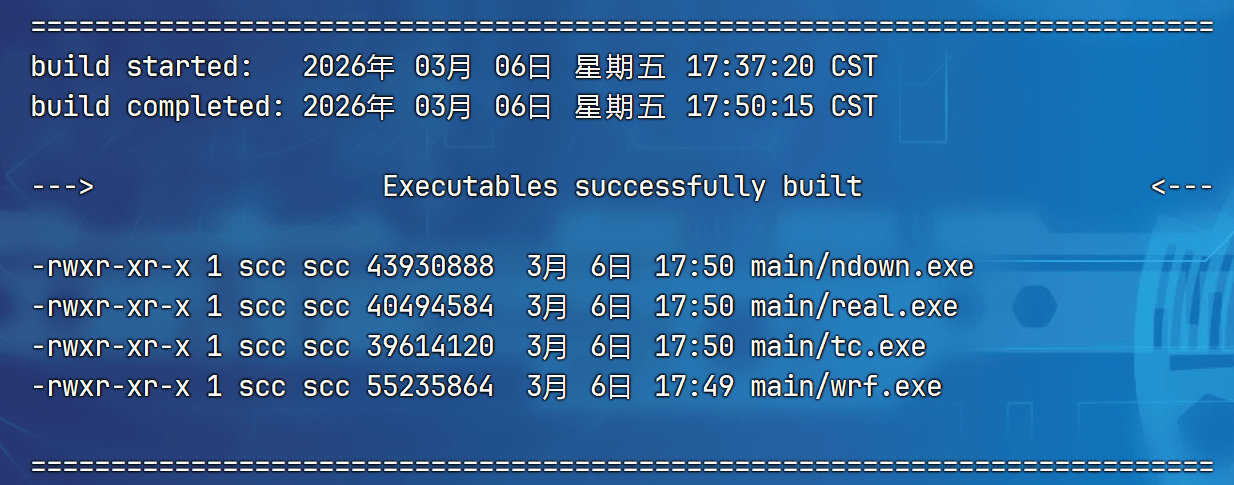

注意： 本文的目标仅为编译 WRF，即看到这样的 log。

1
2
3
4
5
6
7
8
9
10
11
12
==========================================================================
build started:   2026年 03月 06日 星期五 17:37:20 CST
build completed: 2026年 03月 06日 星期五 17:50:15 CST

--->                  Executables successfully built                  <---

-rwxr-xr-x 1 scc scc 43930888  3月 6日 17:50 main/ndown.exe
-rwxr-xr-x 1 scc scc 40494584  3月 6日 17:50 main/real.exe
-rwxr-xr-x 1 scc scc 39614120  3月 6日 17:50 main/tc.exe
-rwxr-xr-x 1 scc scc 55235864  3月 6日 17:50 main/wrf.exe

==========================================================================

2. 前期准备

本文基于 Rocky Linux 10，虚拟机环境。用户名设置为 scc，hostname 设定为 node1（模拟集群环境）。

设备 配置
内存 8 GB
处理器（CPU 核数） 8
硬盘 25 GB
挂载（共享）硬盘 80 GB

挂载（共享）硬盘即下文出现的 /data 文件夹。

首先，你需要有 gcc 和 gfortran，这是安装应用的常用软件。

1
2
3
4
5
6
7
8
9
# 安装
[scc@node1 ~]$ sudo yum install -y gcc g++ gfortran
# 查看版本
[scc@node1 ~]$ gcc --version
gcc (GCC) 14.3.1 20250617 (Red Hat 14.3.1-2)
[scc@node1 ~]$ g++ --version
g++ (GCC) 14.3.1 20250617 (Red Hat 14.3.1-2)
[scc@node1 ~]$ gfortran --version
GNU Fortran (GCC) 14.3.1 20250617 (Red Hat 14.3.1-2)

在你想安装的地方新建文件夹，之后的依赖软件安装和 WRF 本体安装都会在这里进行。

1
2
3
4
5
6
7
[scc@node1 source]$ mkdir Build_WRF
[scc@node1 Build_WRF]$ mkdir LIBRARIES && cd LIBRARIES
[scc@node1 LIBRARIES]$ pwd
/data/software/source/Build_WRF/LIBRARIES
# 获取以下版本的安装包
[scc@node1 LIBRARIES]$ ls
jasper-4.2.8.tar.gz  libpng-1.6.55.tar.gz  mpich-4.3.2.tar.gz  netcdf-c-4.9.3.tar.gz  netcdf-fortran-4.6.2.tar.gz  zlib-1.3.2.tar.gz

3. 依赖软件安装

在这一部分，你将手动编译安装上述 6 个软件，并配置好环境变量。

每一部分配置好后记得 source ~/.bashrc 以加载。

这是最基本的环境变量，即 gcc、g++、gfortran 相关：

1
2
3
4
5
6
7
8
[scc@node1 LIBRARIES]$ vim ~/.bashrc
export DIR=/data/software/source/Build_WRF/LIBRARIES
export CC=gcc
export CXX=g++
export FC=gfortran
export FCFLAGS=-m64
export F77=gfortran
export FFLAGS=-m64

3.1 MPICH

1
2
3
4
5
6
# mpich
[scc@node1 LIBRARIES]$ tar -zxvf mpich-4.3.2.tar.gz && cd mpich-4.3.2
[scc@node1 mpich-4.3.2]$ ./configure --prefix=/data/software/install/mpich/4.3.2
[scc@node1 mpich-4.3.2]$ make -j4 && make install
# 环境变量
[scc@node1 mpich-4.3.2]$ export PATH=/data/software/install/mpich/4.3.2/bin:$PATH

3.2 NetCDF-C

注意： NetCDF-Fortran 依赖于该软件。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
# NetCDF-C
[scc@node1 LIBRARIES]$ tar -zxvf netcdf-c-4.9.3.tar.gz && cd netcdf-c-4.9.3
[scc@node1 netcdf-c-4.9.3]$ ./configure \
> --prefix=/data/software/install/netcdf/c/4.9.3 \
> --disable-dap \
> --disable-netcdf-4 \
> --disable-shared
[scc@node1 netcdf-c-4.9.3]$ make && make install
+-------------------------------------------------------------+
| Congratulations! You have successfully installed netCDF!    |
+-------------------------------------------------------------+
# 环境变量
[scc@node1 netcdf-c-4.9.3]$ vim ~/.bashrc
export PATH=/data/software/install/netcdf/c/4.9.3/bin:$PATH
export NETCDF=/data/software/install/netcdf/c/4.9.3

3.3 NetCDF-Fortran

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
# NetCDF-Fortran
[scc@node1 LIBRARIES]$ tar -zxvf netcdf-fortran-4.6.2.tar.gz && cd netcdf-fortran-4.6.2
# 指定 NetCDF-C 依赖，关闭 Fortran 严格检查
[scc@node1 netcdf-fortran-4.6.2]$ export CPPFLAGS="-I/data/software/install/netcdf/c/4.9.3/include"
[scc@node1 netcdf-fortran-4.6.2]$ export LDFLAGS="-L/data/software/install/netcdf/c/4.9.3/lib -lnetcdf"
[scc@node1 netcdf-fortran-4.6.2]$ export FFLAGS="-g -O2 -Wno-implicit-int -Wno-error=implicit-int -fPIC"
[scc@node1 netcdf-fortran-4.6.2]$ ./configure \
>   --prefix=/data/software/install/netcdf/fortran/4.6.2 \
>   --disable-shared
[scc@node1 netcdf-fortran-4.6.2]$ make && make install
+-------------------------------------------------------------+
| Congratulations! You have successfully installed the netCDF |
| Fortran libraries.                                          |
+-------------------------------------------------------------+
# 环境变量
[scc@node1 netcdf-fortran-4.6.2]$ vim ~/.bashrc
export PATH=/data/software/install/netcdf/fortran/4.6.2/bin:$PATH
export NETCDF_FORTRAN=/data/software/install/netcdf/fortran/4.6.2

3.4 zlib

注意： 此应用和后面的 libpng、jasper 要装到同一个文件夹下。

1
2
3
4
5
6
7
8
9
# zlib
[scc@node1 LIBRARIES]$ tar -zxvf zlib-1.3.2.tar.gz
[scc@node1 LIBRARIES]$ cd zlib-1.3.2
[scc@node1 zlib-1.3.2]$ ./configure --prefix=/data/software/install/grib2
[scc@node1 zlib-1.3.2]$ make && make install
# 环境变量
[scc@node1 zlib-1.3.2]$ vim ~/.bashrc
export LDFLAGS=-L/data/software/install/grib2/lib
export CPPFLAGS=-I/data/software/install/grib2/include

3.5 libpng

1
2
3
4
5
6
# libpng
[scc@node1 LIBRARIES]$ tar -zxvf libpng-1.6.55.tar.gz
[scc@node1 LIBRARIES]$ cd libpng-1.6.55
[scc@node1 libpng-1.6.55]$ ./configure --prefix=/data/software/install/grib2
[scc@node1 libpng-1.6.55]$ make && make install
# 无需配置环境变量

3.6 jasper

1
2
3
4
5
6
7
8
9
10
# jasper
[scc@node1 LIBRARIES]$ tar -zxvf jasper-4.2.8.tar.gz
# 软件禁止源码内构建，故在 LIBRARIES 目录下 build
[scc@node1 LIBRARIES]$ mkdir jasper_build && cd jasper_build
[scc@node1 jasper_build]$ cmake \
>   -DCMAKE_INSTALL_PREFIX=/data/software/install/grib2 \
>   -DCMAKE_BUILD_TYPE=Release \
>   /data/software/source/Build_WRF/LIBRARIES/jasper-4.2.8
[scc@node1 jasper_build]$ make -j4 && make install
# 无需配置环境变量

4. 编译 WRF

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
# WRF
[scc@node1 Build_WRF]$ pwd
/data/software/source/Build_WRF
# 获取 WRF 完整源码（--recursive 以获取所有子模块）
[scc@node1 Build_WRF]$ git clone --recursive https://github.com/wrf-model/WRF.git WRF-4.7.1
子模组路径 '.ci/hpc-workflows'：检出
子模组路径 'phys/MYNN-EDMF'：   检出
子模组路径 'phys/noahmp'：      检出
[scc@node1 Build_WRF]$ cd WRF-4.7.1
[scc@node1 WRF-4.7.1]$ ./configure
Error : Not found /data/software/install/netcdf/c/4.9.3/include/netcdf.inc
# 复制 NetCDF-Fortran 中的 netcdf.inc 以满足需求
[scc@node1 include]$ pwd
/data/software/install/netcdf/c/4.9.3/include
[scc@node1 include]$ cp /data/software/install/netcdf/fortran/4.6.2/include/netcdf.inc .
# 再次 ./configure，成功
[scc@node1 WRF-4.7.1]$ ./configure
*****************************************************************************
This build of WRF will use classic (non-compressed) NETCDF format
*****************************************************************************

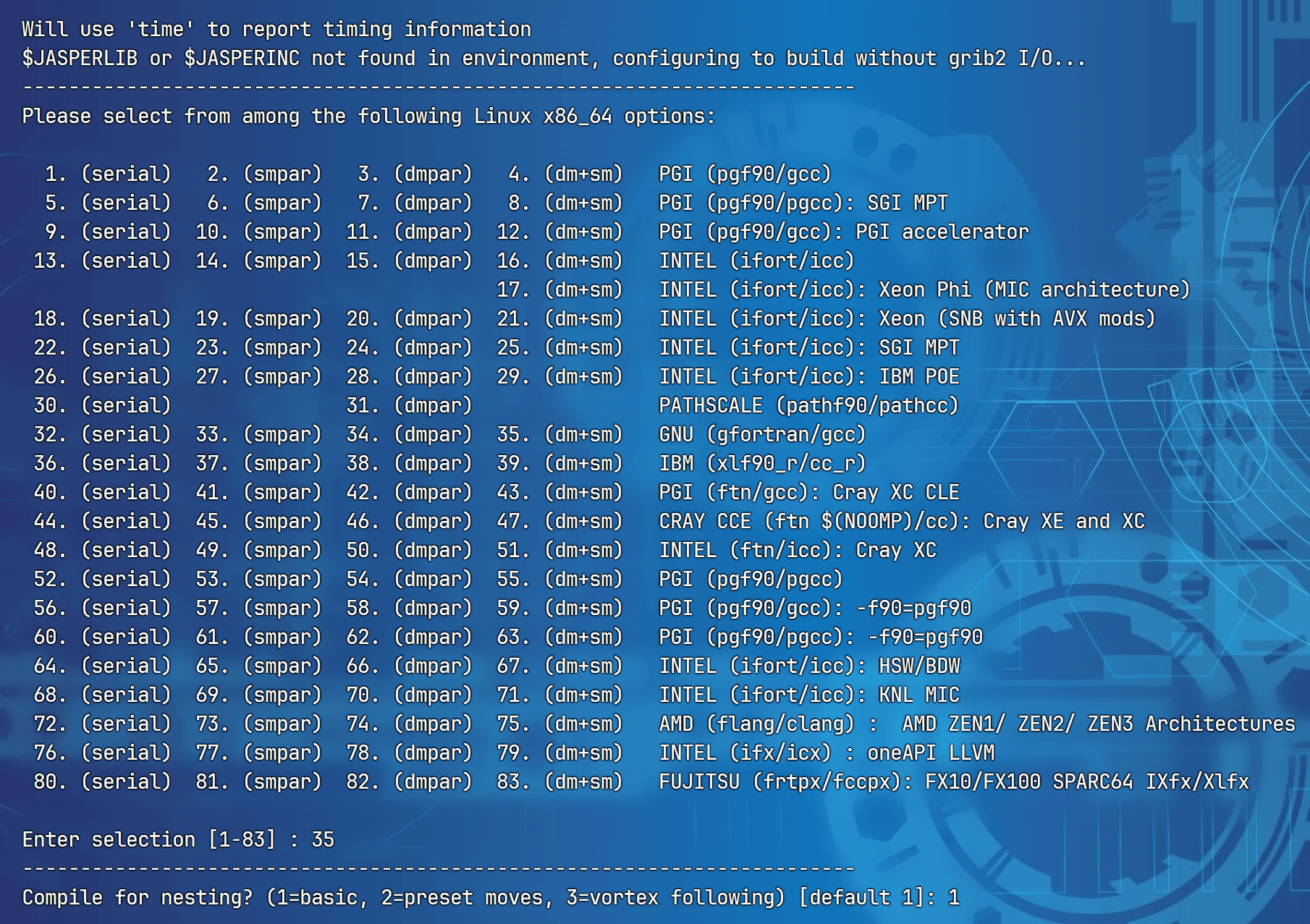

编译时的选项选择（具体含义可以自行查阅）：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
# 修改配置，以正确引入 NetCDF-Fortran
[scc@node1 WRF-4.7.1]$ vim configure.wrf
# 保证 fortran 在 c 之前链接
 LIB_EXTERNAL    = \
                      -L$(WRF_SRC_ROOT_DIR)/external/io_netcdf -lwrfio_nf \
                      -L/data/software/install/netcdf/fortran/4.6.2/lib -lnetcdff \
                      -L/data/software/install/netcdf/c/4.9.3/lib  -lnetcdf

INCLUDE_MODULES =    $(MODULE_SRCH_FLAG) \
                     $(ESMF_MOD_INC) $(ESMF_LIB_FLAGS) \
                                           -I/data/software/install/netcdf/fortran/4.6.2/include

wrfio_nf :
	( cd $(WRF_SRC_ROOT_DIR)/external/io_netcdf ; \
          make $(J) NETCDFPATH="$(NETCDFPATH)" RANLIB="$(RANLIB)" CPP="$(CPP)" \
          NETCDFFPATH="/data/software/install/netcdf/fortran/4.6.2" \
          CC="$(SCC)" CFLAGS="$(CFLAGS)" NETCDF4_DEP_LIB="$(NETCDF4_DEP_LIB)" \
          FFLAGS="-I/data/software/install/netcdf/fortran/4.6.2/include $(FFLAGS)" \
          FC="$(SFC) $(PROMOTION) $(OMP) $(FCFLAGS)" TRADFLAG="$(TRADFLAG)" AR="$(AR)" ARFLAGS="$(ARFLAGS)" )

configure.wrf 的完整内容：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
310
311
312
313
314
315
316
317
318
319
320
321
322
323
324
325
326
327
328
329
330
331
332
333
334
335
336
337
338
339
340
341
342
343
344
345
346
347
348
349
350
351
352
353
354
355
356
357
358
359
360
361
362
363
364
365
366
367
368
369
370
371
372
373
374
375
376
377
378
379
380
381
382
383
384
385
386
387
388
389
390
391
392
393
394
395
396
397
398
399
400
401
402
403
404
405
406
407
408
409
410
411
412
413
414
415
416
417
418
419
420
421
422
423
424
425
426
427
428
429
430
431
432
433
434
435
436
437
438
439
440
441
442
443
444
445
446
447
448
449
450
451
452
453
454
455
456
457
458
459
460
461
462
463
464
465
466
467
468
469
470
471
472
473
474
475
476
477
478
479
480
481
482
483
484
485
486
487
488
489
490
491
492
493
494
495
496
497
498
499
500
501
502
503
504
505
506
507
508
509
510
511
512
513
514
515
516
517
518
519
520
521
522
523
524
525
526
527
528
529
530
531
532
533
534
535
536
537
538
539
540
541
542
543
544
545
546
# configure.wrf
#
# Original configure options used:
# ./configure
# Compiler choice: 35
# Nesting option: 1
#
# This file was automatically generated by the configure script in the
# top level directory. You may make changes to the settings in this
# file but be aware they will be overwritten each time you run configure.
# Ordinarily, it is necessary to run configure once, when the code is
# first installed.
#
# To permanently change options, change the settings for your platform
# in the file arch/configure.defaults then rerun configure.
#
SHELL           =       /bin/sh
DEVTOP          =       `pwd`
LIBINCLUDE      =       .
.SUFFIXES: .F .i .o .f90 .c .F90

#### Get core settings from environment (set in compile script)
#### Note to add a core, this has to be added to.

COREDEFS = -DEM_CORE=$(WRF_EM_CORE) \
           -DNMM_CORE=$(WRF_NMM_CORE) -DNMM_MAX_DIM=2600 \
	   -DDA_CORE=$(WRF_DA_CORE) \
	   -DWRFPLUS=$(WRF_PLUS_CORE)

#### Single location for defining total number of domains.  You need
#### at least 1 + 2*(number of total nests).  For example, 1 coarse
#### grid + three fine grids = 1 + 2(3) = 7, so MAX_DOMAINS=7.

MAX_DOMAINS	=	21

#### DM buffer length for the configuration flags.

CONFIG_BUF_LEN	=	65536

#### Size of bitmasks (in 4byte integers) of stream masks for WRF I/O

MAX_HISTORY = 25

IWORDSIZE = 4
DWORDSIZE = 8
LWORDSIZE = 4

##############################################################################
#### The settings in this section are defaults that may be overridden by the
#### architecture-specific settings in the next section.
##############################################################################

##############################################################################
#### NOTE:  Do not modify these default values here.  To override these
####        values, make changes after "Architecture specific settings".
##############################################################################

#### Native size (in bytes) of Fortran REAL data type on this architecture ####
#### Note:  to change real wordsize (for example, to promote REALs from
####        4-byte to 8-byte), modify the definition of RWORDSIZE in the
####        section following "Architecture specific settings".  Do not
####        change NATIVE_RWORDSIZE as is it architecture-specific.
NATIVE_RWORDSIZE = 4

#### Default sed command and script for Fortran source files ####
#SED_FTN = sed -f $(WRF_SRC_ROOT_DIR)/arch/standard.sed
SED_FTN = $(WRF_SRC_ROOT_DIR)/tools/standard.exe

# Hack to work around $(PWD) not changing during OSF1 build.
# $(IO_GRIB_SHARE_DIR) is reset during the OSF1 build only.
IO_GRIB_SHARE_DIR =

#### ESMF switches                 ####
#### These are set up by Config.pl ####
# switch to use separately installed ESMF library for coupling:  1==true
ESMF_COUPLING       = 0
# select dependences on module_utility.o
ESMF_MOD_DEPENDENCE = $(WRF_SRC_ROOT_DIR)/external/esmf_time_f90/module_utility.o
# select -I options for external/io_esmf vs. external/esmf_time_f90
ESMF_IO_INC         = -I$(WRF_SRC_ROOT_DIR)/external/esmf_time_f90
# select -I options for separately installed ESMF library, if present
ESMF_MOD_INC        =  $(ESMF_IO_INC)
# select cpp token for external/io_esmf vs. external/esmf_time_f90
ESMF_IO_DEFS        =
# select build target for external/io_esmf vs. external/esmf_time_f90
ESMF_TARGET         = esmf_time

# ESMFINCLUDEGOESHERE

#### NETCDF4 pieces

NETCDF4_IO_OPTS = -DUSE_NETCDF4_FEATURES -DWRFIO_NCD_LARGE_FILE_SUPPORT
GPFS            =
CURL            =
HDF5            =
ZLIB            =
NETCDF4_DEP_LIB =

# NETCDF4INCLUDEGOESHERE

#### CTSM pieces

# CTSMINCLUDEGOESHERE

##############################################################################

LIBWRFLIB = libwrflib.a

 LIB_BUNDLED     = \
                      $(WRF_SRC_ROOT_DIR)/external/fftpack/fftpack5/libfftpack.a \
                      $(WRF_SRC_ROOT_DIR)/external/io_grib1/libio_grib1.a \
                      $(WRF_SRC_ROOT_DIR)/external/io_grib_share/libio_grib_share.a \
                      $(WRF_SRC_ROOT_DIR)/external/io_int/libwrfio_int.a \
                      $(ESMF_IO_LIB) \
                      $(WRF_SRC_ROOT_DIR)/external/RSL_LITE/librsl_lite.a \
                      $(WRF_SRC_ROOT_DIR)/frame/module_internal_header_util.o \
                      $(WRF_SRC_ROOT_DIR)/frame/pack_utils.o

 LIB_EXTERNAL    = \
                      -L$(WRF_SRC_ROOT_DIR)/external/io_netcdf -lwrfio_nf \
                      -L/data/software/install/netcdf/fortran/4.6.2/lib -lnetcdff \
                      -L/data/software/install/netcdf/c/4.9.3/lib  -lnetcdf


#### Architecture specific settings ####

# Settings for    Linux x86_64 ppc64le, gfortran compiler with gcc   (dm+sm)
#
DESCRIPTION     =       GNU ($SFC/$SCC)
DMPARALLEL      =        1
OMPCPP          =        -D_OPENMP
OMP             =        -fopenmp
OMPCC           =        -fopenmp
SFC             =       gfortran
SCC             =       gcc
CCOMP           =       gcc
DM_FC           =       mpif90
DM_CC           =       mpicc -cc=$(SCC)
FC              =       time $(DM_FC)
CC              =       $(DM_CC) -DFSEEKO_OK
LD              =       $(FC)
RWORDSIZE       =       4
PROMOTION       =       #-fdefault-real-8
ARCH_LOCAL      =       -DNONSTANDARD_SYSTEM_SUBR  -DWRF_USE_CLM
# to validate WRF correctness on aarch64 against x86_64; compile with x86 this alternate ARCH_LOCAL option; able to achieve identical output model on ubuntu 18.04 with gcc 10.2 (on graviton and intel processors)
# ARCH_LOCAL      =       -DNONSTANDARD_SYSTEM_SUBR  -DWRF_USE_CLM -DAARCH64_X86_CORRECTNESS_FIX
CFLAGS_LOCAL    =       -w -O3 -c  # -DRSL0_ONLY
LDFLAGS_LOCAL   =
CPLUSPLUSLIB    =
ESMF_LDFLAG     =       $(CPLUSPLUSLIB)
FCOPTIM         =       -O2 -ftree-vectorize -funroll-loops
FCREDUCEDOPT	=       $(FCOPTIM)
FCNOOPT		=       -O0
FCDEBUG         =       # -g $(FCNOOPT) # -ggdb -fbacktrace -fcheck=bounds,do,mem,pointer -ffpe-trap=invalid,zero,overflow
FORMAT_FIXED    =       -ffixed-form
FORMAT_FREE     =       -ffree-form -ffree-line-length-none
FCSUFFIX        =
FCCOMPAT        =        -fallow-argument-mismatch -fallow-invalid-boz
BYTESWAPIO      =       -fconvert=big-endian -frecord-marker=4
FCBASEOPTS_NO_G =       -w $(FORMAT_FREE) $(BYTESWAPIO) $(FCCOMPAT)
FCBASEOPTS      =       $(FCBASEOPTS_NO_G) $(FCDEBUG)
MODULE_SRCH_FLAG =
TRADFLAG        =      -traditional-cpp
CPP             =      /lib/cpp -P -nostdinc
AR              =      ar
ARFLAGS         =      ru
M4              =      m4 -G
RANLIB          =      ranlib
RLFLAGS		=
CC_TOOLS        =      $(SCC)


###########################################################
######################
# POSTAMBLE

FGREP = fgrep -iq
### Used throughout the build system to inform promotion to double precision
DOUBLE_PRECISION =

ARCHFLAGS       =    $(COREDEFS) -DIWORDSIZE=$(IWORDSIZE) -DDWORDSIZE=$(DWORDSIZE) -DRWORDSIZE=$(RWORDSIZE) -DLWORDSIZE=$(LWORDSIZE)  \
                     $(ARCH_LOCAL) \
                     $(DA_ARCHFLAGS) \
                      -DDM_PARALLEL \
                       \
                      -DNETCDF \
                       \
                       \
                       \
                       \
                       \
                       \
                       \
                       \
                       \
                       \
                       -DLANDREAD_STUB=1 \
                       \
                       \
                      -DUSE_ALLOCATABLES \
                      -Dwrfmodel \
                      -DGRIB1 \
                      -DINTIO \
                      -DKEEP_INT_AROUND \
                      -DLIMIT_ARGS \
                      -DBUILD_RRTMG_FAST=0 \
                      -DBUILD_RRTMK=0 \
                      -DBUILD_SBM_FAST=1 \
                      -DSHOW_ALL_VARS_USED=0 \
                      -DCONFIG_BUF_LEN=$(CONFIG_BUF_LEN) \
                      -DMAX_DOMAINS_F=$(MAX_DOMAINS) \
                      -DMAX_HISTORY=$(MAX_HISTORY) \
		      -DNMM_NEST=$(WRF_NMM_NEST)
CFLAGS          =    $(CFLAGS_LOCAL) -DDM_PARALLEL  \
                      -DLANDREAD_STUB=1 \
                      -DMAX_HISTORY=$(MAX_HISTORY) -DNMM_CORE=$(WRF_NMM_CORE)
FCFLAGS         =    $(FCOPTIM) $(FCBASEOPTS)
ESMF_LIB_FLAGS  =
# ESMF 5 -- these are defined in esmf.mk, included above
 ESMF_IO_LIB     =    -L$(WRF_SRC_ROOT_DIR)/external/esmf_time_f90 -lesmf_time
ESMF_IO_LIB_EXT =    -L$(WRF_SRC_ROOT_DIR)/external/esmf_time_f90 -lesmf_time
INCLUDE_MODULES =    $(MODULE_SRCH_FLAG) \
                     $(ESMF_MOD_INC) $(ESMF_LIB_FLAGS) \
                      -I$(WRF_SRC_ROOT_DIR)/main \
                      -I$(WRF_SRC_ROOT_DIR)/external/io_netcdf \
                      -I$(WRF_SRC_ROOT_DIR)/external/io_int \
                      -I$(WRF_SRC_ROOT_DIR)/frame \
                      -I$(WRF_SRC_ROOT_DIR)/share \
                      -I$(WRF_SRC_ROOT_DIR)/phys \
                      -I$(WRF_SRC_ROOT_DIR)/wrftladj \
                      -I$(WRF_SRC_ROOT_DIR)/chem -I$(WRF_SRC_ROOT_DIR)/inc \
                      -I$(NETCDFPATH)/include \
                      -I/data/software/install/netcdf/fortran/4.6.2/include

REGISTRY        =    Registry
CC_TOOLS_CFLAGS = -DNMM_CORE=$(WRF_NMM_CORE)

LIB             =    $(LIB_BUNDLED) $(LIB_EXTERNAL) $(LIB_LOCAL) $(LIB_WRF_HYDRO)
LDFLAGS         =    $(OMP) $(FCFLAGS) $(LDFLAGS_LOCAL)
ENVCOMPDEFS     =
WRF_CHEM	=	0
CPPFLAGS        =    $(ARCHFLAGS) $(ENVCOMPDEFS) -I$(LIBINCLUDE) $(TRADFLAG)
NETCDFPATH      =    /data/software/install/netcdf/c/4.9.3
HDF5PATH        =
WRFPLUSPATH     =
RTTOVPATH       =
PNETCDFPATH     =
ADIOS2PATH      =
NETCDFPAR_BUILD	=    echo SKIPPING


bundled:  io_only
external: io_only $(WRF_SRC_ROOT_DIR)/external/RSL_LITE/librsl_lite.a gen_comms_rsllite module_dm_rsllite $(ESMF_TARGET)
io_only:  esmf_time wrfio_nf     \
	  wrf_ioapi_includes wrfio_grib_share wrfio_grib1 wrfio_int fftpack


######################
externals: io_only bundled external

gen_comms_serial :
	( /bin/rm -f $(WRF_SRC_ROOT_DIR)/tools/gen_comms.c )

module_dm_serial :
	( if [ ! -e module_dm.F ] ; then /bin/cp module_dm_warning module_dm.F ; cat module_dm_stubs.F >> module_dm.F ; fi )

gen_comms_rsllite :
	( if [ ! -e $(WRF_SRC_ROOT_DIR)/tools/gen_comms.c ] ; then \
          /bin/cp $(WRF_SRC_ROOT_DIR)/tools/gen_comms_warning $(WRF_SRC_ROOT_DIR)/tools/gen_comms.c ; \
          cat $(WRF_SRC_ROOT_DIR)/external/RSL_LITE/gen_comms.c >> $(WRF_SRC_ROOT_DIR)/tools/gen_comms.c ; fi )

module_dm_rsllite :
	( if [ ! -e module_dm.F ] ; then /bin/cp module_dm_warning module_dm.F ; \
          cat $(WRF_SRC_ROOT_DIR)/external/RSL_LITE/module_dm.F >> module_dm.F ; fi )

wrfio_nf :
	( cd $(WRF_SRC_ROOT_DIR)/external/io_netcdf ; \
          make $(J) NETCDFPATH="$(NETCDFPATH)" RANLIB="$(RANLIB)" CPP="$(CPP)" \
          NETCDFFPATH="/data/software/install/netcdf/fortran/4.6.2" \
          CC="$(SCC)" CFLAGS="$(CFLAGS)" NETCDF4_DEP_LIB="$(NETCDF4_DEP_LIB)" \
          FFLAGS="-I/data/software/install/netcdf/fortran/4.6.2/include $(FFLAGS)" \
          FC="$(SFC) $(PROMOTION) $(OMP) $(FCFLAGS)" TRADFLAG="$(TRADFLAG)" AR="$(AR)" ARFLAGS="$(ARFLAGS)" )

wrfio_nfpar :
	( cd $(WRF_SRC_ROOT_DIR)/external/io_netcdfpar ; \
          make $(J) NETCDFPARPATH="$(NETCDFPATH)" RANLIB="$(RANLIB)" CPP="$(CPP) $(ARCHFLAGS)" \
          NETCDF4_DEP_LIB="$(NETCDF4_DEP_LIB)" \
          FC="$(FC) $(PROMOTION) $(OMP) $(FCFLAGS)" TRADFLAG="$(TRADFLAG)" AR="$(AR)" ARFLAGS="$(ARFLAGS)" )

wrfio_pnf :
	( cd $(WRF_SRC_ROOT_DIR)/external/io_pnetcdf ; \
          make $(J) NETCDFPATH="$(PNETCDFPATH)" RANLIB="$(RANLIB)" CPP="$(CPP) $(ARCHFLAGS)" \
          FC="$(FC) $(PROMOTION) $(OMP) $(FCFLAGS)" TRADFLAG="$(TRADFLAG)" AR="$(AR)" ARFLAGS="$(ARFLAGS)" )

wrfio_adios2 :
	( cd $(WRF_SRC_ROOT_DIR)/external/io_adios2 ; \
          make $(J) ADIOS2="$(ADIOS2PATH)" RANLIB="$(RANLIB)" CPP="$(CPP) $(ARCHFLAGS)" \
          FC="$(FC) $(PROMOTION) $(OMP) $(FCFLAGS)" TRADFLAG="$(TRADFLAG)" AR="$(AR)" ARFLAGS="$(ARFLAGS)" )

wrfio_grib_share :
	( cd $(WRF_SRC_ROOT_DIR)/external/io_grib_share ; \
          make $(J) CC="$(SCC)" CFLAGS="$(CFLAGS)" RM="$(RM)" RANLIB="$(RANLIB)" CPP="$(CPP)" \
          FC="$(SFC) $(PROMOTION) -I. $(FCDEBUG) $(FCBASEOPTS) $(FCSUFFIX)" TRADFLAG="$(TRADFLAG)" AR="$(AR)" ARFLAGS="$(ARFLAGS)" archive)

wrfio_grib1 :
	( cd $(WRF_SRC_ROOT_DIR)/external/io_grib1 ; \
          make $(J) CC="$(SCC)" CFLAGS="$(CFLAGS)" RM="$(RM)" RANLIB="$(RANLIB)" CPP="$(CPP)" \
          FC="$(SFC) $(PROMOTION) -I. $(FCDEBUG) $(FCBASEOPTS) $(FCSUFFIX)" TRADFLAG="$(TRADFLAG)" AR="$(AR)" ARFLAGS="$(ARFLAGS)" archive)

wrfio_grib2 :
	( cd $(WRF_SRC_ROOT_DIR)/external/io_grib2 ; \
          make $(J) CC="$(SCC)" CFLAGS="$(CFLAGS) " RM="$(RM)" RANLIB="$(RANLIB)" \
          CPP="$(CPP)" \
          FC="$(SFC) $(PROMOTION) -I. $(FCDEBUG) $(FCBASEOPTS) $(FCSUFFIX)" TRADFLAG="-traditional" AR="$(AR)" ARFLAGS="$(ARFLAGS)" \
          FIXED="$(FORMAT_FIXED)" archive)

wrfio_int :
	( cd $(WRF_SRC_ROOT_DIR)/external/io_int ; \
          make $(J) CC="$(CC)" CFLAGS_LOCAL="$(CFLAGS_LOCAL)" RM="$(RM)" RANLIB="$(RANLIB)" CPP="$(CPP)" \
          FC="$(FC) $(PROMOTION) $(FCDEBUG) $(FCBASEOPTS) $(OMP)" FGREP="$(FGREP)" \
          TRADFLAG="$(TRADFLAG)" AR="$(AR)" ARFLAGS="$(ARFLAGS)" ARCHFLAGS="$(ARCHFLAGS)" all )

esmf_time :
	( cd $(WRF_SRC_ROOT_DIR)/external/esmf_time_f90 ; \
          make $(J) FC="$(SFC) $(PROMOTION) $(FCDEBUG) $(FCBASEOPTS)" RANLIB="$(RANLIB)" \
          CPP="$(CPP) -I$(WRF_SRC_ROOT_DIR)/inc -I. $(ARCHFLAGS) $(TRADFLAG)" AR="$(AR)" ARFLAGS="$(ARFLAGS)" )

fftpack :
	( cd $(WRF_SRC_ROOT_DIR)/external/fftpack/fftpack5 ; \
          make $(J) FC="$(SFC)" FFLAGS="$(PROMOTION) $(FCDEBUG) $(FCBASEOPTS)" RANLIB="$(RANLIB)" AR="$(AR)" \
          ARFLAGS="$(ARFLAGS)" CPP="$(CPP)" CPPFLAGS="$(CPPFLAGS)" RM="$(RM)" )

atm_ocn :
	( cd $(WRF_SRC_ROOT_DIR)/external/atm_ocn ; \
          make $(J) CC="$(SCC)" CFLAGS="$(CFLAGS) " RM="$(RM)" RANLIB="$(RANLIB)" \
          CPP="$(CPP)" CPPFLAGS="$(CPPFLAGS)" \
          FC="$(DM_FC) $(PROMOTION) -I. $(FCDEBUG) $(FCBASEOPTS) $(FCSUFFIX)" TRADFLAG="-traditional" AR="$(AR)" ARFLAGS="$(ARFLAGS)" \
          FIXED="$(FORMAT_FIXED)" )

$(WRF_SRC_ROOT_DIR)/external/RSL_LITE/librsl_lite.a :
	( cd $(WRF_SRC_ROOT_DIR)/external/RSL_LITE ; make $(J) CC="$(CC) $(CFLAGS)" \
          FC="$(FC) $(FCFLAGS) $(OMP) $(PROMOTION) $(BYTESWAPIO)" \
          CPP="$(CPP) -I. $(ARCHFLAGS) $(OMPCPP) $(TRADFLAG)" AR="$(AR)" ARFLAGS="$(ARFLAGS)" ;\
          $(RANLIB) $(WRF_SRC_ROOT_DIR)/external/RSL_LITE/librsl_lite.a )

######################
#	Macros, these should be generic for all machines

LN	=	ln -sf
MAKE	=	make -i -r
RM	= 	rm -f


# These sub-directory builds are identical across all architectures

wrf_ioapi_includes :
	( cd $(WRF_SRC_ROOT_DIR)/external/ioapi_share ; \
          $(MAKE) NATIVE_RWORDSIZE="$(NATIVE_RWORDSIZE)" RWORDSIZE="$(RWORDSIZE)" AR="$(AR)" ARFLAGS="$(ARFLAGS)" )

wrfio_esmf :
	( cd $(WRF_SRC_ROOT_DIR)/external/io_esmf ; \
          make FC="$(FC) $(PROMOTION) $(FCDEBUG) $(FCBASEOPTS) $(ESMF_MOD_INC)" \
          RANLIB="$(RANLIB)" CPP="$(CPP) $(POUND_DEF) " AR="$(AR)" ARFLAGS="$(ARFLAGS)" )

#	There is probably no reason to modify these rules

.F.i:
	$(RM) $@
	sed -e "s/^\!.*'.*//" -e "s/^ *\!.*'.*//" $*.F > $*.G
	$(CPP) -I$(WRF_SRC_ROOT_DIR)/inc $(CPPFLAGS) $*.G > $*.i
	mv $*.i $(DEVTOP)/pick/$*.f90
	cp $*.F $(DEVTOP)/pick

.F.o:
	$(RM) $@
	sed -e "s/^\!.*'.*//" -e "s/^ *\!.*'.*//" $*.F > $*.G
	$(CPP) -I$(WRF_SRC_ROOT_DIR)/inc $(CPPFLAGS) $(OMPCPP) $*.G  > $*.bb
	$(SED_FTN) $*.bb | $(CPP) $(TRADFLAG) > $*.f90
	$(RM) $*.G $*.bb
	@ if echo $(ARCHFLAGS) | $(FGREP) 'DVAR4D'; then \
          echo COMPILING $*.F for 4DVAR ; \
          $(WRF_SRC_ROOT_DIR)/var/build/da_name_space.pl $*.f90 > $*.f90.tmp ; \
          mv $*.f90.tmp $*.f90 ; \
        fi
	$(FC) -o $@ -c $(FCFLAGS) $(OMP) $(MODULE_DIRS) $(PROMOTION) $(FCSUFFIX) $*.f90

.F90.o:
	$(RM) $@
	sed -e "s/^\!.*'.*//" -e "s/^ *\!.*'.*//" $*.F90 > $*.G
	$(CPP) -I$(WRF_SRC_ROOT_DIR)/inc $(CPPFLAGS) $(OMPCPP) $*.G  > $*.bb
	$(SED_FTN) $*.bb | $(CPP) $(TRADFLAG) > $*.tmp.f90
	$(RM) $*.G $*.bb
	$(FC) -o $@ -c $(FCFLAGS) $(OMP) $(MODULE_DIRS) $(PROMOTION) $(FCSUFFIX) $*.tmp.f90

.F.f90:
	$(RM) $@
	sed -e "s/^\!.*'.*//" -e "s/^ *\!.*'.*//" $*.F > $*.G
	$(SED_FTN) $*.G > $*.H
	$(CPP) -I$(WRF_SRC_ROOT_DIR)/inc $(CPPFLAGS) $*.H  > $@
	$(RM) $*.G $*.H

.f90.o:
	$(RM) $@
	$(FC) -o $@ -c $(FCFLAGS) $(PROMOTION) $(FCSUFFIX) $*.f90

setfeenv.o : setfeenv.c
	$(RM) $@
	$(CCOMP) -o $@ -c $(CFLAGS) $(OMPCC) $*.c

.c.o:
	$(RM) $@
	$(CC) -o $@ -c $(CFLAGS) $*.c

# A little more adventurous.  Allow full opt on
# mediation_integrate.o \
# shift_domain_em.o \
# solve_em.o  <-- gets a little kick from SOLVE_EM_SPECIAL too, if defined
# mediation_feedback_domain.o : mediation_feedback_domain.F
# mediation_force_domain.o : mediation_force_domain.F
# mediation_interp_domain.o : mediation_interp_domain.F

# compile these without high optimization to speed compile
track_driver.o : track_driver.F
convert_nmm.o : convert_nmm.F
init_modules_em.o : init_modules_em.F
input_wrf.o : input_wrf.F
module_io.o : module_io.F
module_comm_dm.o : module_comm_dm.F
module_comm_dm_0.o : module_comm_dm_0.F
module_comm_dm_1.o : module_comm_dm_1.F
module_comm_dm_2.o : module_comm_dm_2.F
module_comm_dm_3.o : module_comm_dm_3.F
module_comm_nesting_dm.o : module_comm_nesting_dm.F
module_configure.o : module_configure.F
module_domain.o : module_domain.F
module_domain_type.o : module_domain_type.F
module_tiles.o : module_tiles.F
module_initialize.o : module_initialize.F
module_physics_init.o : module_physics_init.F
module_initialize_squall2d_x.o : module_initialize_squall2d_x.F
module_initialize_squall2d_y.o : module_initialize_squall2d_y.F
module_initialize_scm_xy.o : module_initialize_scm_xy.F
module_integrate.o : module_integrate.F
module_io_mm5.o : module_io_mm5.F
module_io_wrf.o : module_io_wrf.F
module_si_io.o : module_si_io.F
module_wps_io_arw.o : module_wps_io_arw.F
module_state_description.o : module_state_description.F
output_wrf.o : output_wrf.F
solve_interface.o : solve_interface.F
start_domain.o : start_domain.F
wrf_bdyin.o : wrf_bdyin.F
wrf_bdyout.o : wrf_bdyout.F
wrf_ext_read_field.o : wrf_ext_read_field.F
wrf_ext_write_field.o : wrf_ext_write_field.F
wrf_fddaobs_in.o : wrf_fddaobs_in.F
wrf_histin.o : wrf_histin.F
wrf_histout.o : wrf_histout.F
wrf_inputin.o : wrf_inputin.F
wrf_inputout.o : wrf_inputout.F
wrf_restartin.o : wrf_restartin.F
wrf_restartout.o : wrf_restartout.F
wrf_tsin.o : wrf_tsin.F
nl_get_0_routines.o : nl_get_0_routines.F
nl_get_1_routines.o : nl_get_1_routines.F
nl_set_0_routines.o : nl_set_0_routines.F
nl_set_1_routines.o : nl_set_1_routines.F

track_driver.o \
convert_nmm.o \
init_modules_em.o \
module_initialize.o \
module_initialize_squall2d_x.o \
module_initialize_squall2d_y.o \
module_initialize_scm_xy.o \
module_integrate.o \
module_io_mm5.o \
module_io_wrf.o \
module_si_io.o \
module_wps_io_arw.o \
module_tiles.o \
output_wrf.o \
solve_interface.o \
start_domain.o \
wrf_fddaobs_in.o \
wrf_tsin.o :
	$(RM) $@
	$(SED_FTN) $*.F > $*.b
	$(CPP) -I$(WRF_SRC_ROOT_DIR)/inc $(CPPFLAGS) $(OMPCPP) $*.b  > $*.f90
	$(RM) $*.b
	@ if echo $(ARCHFLAGS) | $(FGREP) 'DVAR4D'; then \
          echo COMPILING $*.F for 4DVAR ; \
          $(WRF_SRC_ROOT_DIR)/var/build/da_name_space.pl $*.f90 > $*.f90.tmp ; \
          mv $*.f90.tmp $*.f90 ; \
        fi
	$(FC) -c $(PROMOTION) $(FCNOOPT) $(FCBASEOPTS) $(MODULE_DIRS) $(FCSUFFIX) $(OMP) $*.f90

#solve_em.o :
#	$(RM) $@
#	$(SED_FTN) $*.F > $*.b
#	$(CPP) -I$(WRF_SRC_ROOT_DIR)/inc $(CPPFLAGS) $*.b  > $*.f90
#	$(RM) $*.b
#	$(FC) -o $@ -c $(FCFLAGS) $(MODULE_DIRS) $(PROMOTION) $(FCSUFFIX) $(SOLVE_EM_SPECIAL) $(OMP) $*.f90

module_sf_ruclsm.o : module_sf_ruclsm.F

module_sf_ruclsm.o :
	$(RM) $@
	$(SED_FTN) $*.F > $*.b
	$(CPP) -I$(WRF_SRC_ROOT_DIR)/inc $(CPPFLAGS) $(OMPCPP) $*.b  > $*.f90
	$(RM) $*.b
	$(FC) -c $(PROMOTION) $(FCREDUCEDOPT) $(FCBASEOPTS) $(MODULE_DIRS) $(FCSUFFIX) $(OMP) $*.f90

input_wrf.o \
module_domain.o \
module_domain_type.o \
module_physics_init.o \
module_io.o \
wrf_bdyin.o \
wrf_bdyout.o \
wrf_ext_read_field.o \
wrf_ext_write_field.o \
wrf_histin.o \
wrf_histout.o \
wrf_inputin.o \
wrf_inputout.o \
wrf_restartin.o \
wrf_restartout.o \
module_state_description.o \
module_comm_dm.o \
module_comm_dm_0.o \
module_comm_dm_1.o \
module_comm_dm_2.o \
module_comm_dm_3.o \
module_comm_nesting_dm.o \
module_configure.o :
	$(RM) $@
	$(CPP) -I$(WRF_SRC_ROOT_DIR)/inc $(CPPFLAGS) $(OMPCPP) $*.F  > $*.bb
	$(SED_FTN) $*.bb | $(CPP) $(TRADFLAG) > $*.f90
	@ if echo $(ARCHFLAGS) | $(FGREP) 'DVAR4D'; then \
          echo COMPILING $*.F for 4DVAR ; \
          $(WRF_SRC_ROOT_DIR)/var/build/da_name_space.pl $*.f90 > $*.f90.tmp ; \
          mv $*.f90.tmp $*.f90 ; \
        fi
	$(RM) $*.b $*.bb
	$(FC) -c $(PROMOTION) $(FCSUFFIX) $(FCNOOPT) $(FCBASEOPTS) $(MODULE_DIRS) $(OMP) $*.f90
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
# 模拟编译
[scc@node1 WRF-4.7.1]$ ./compile em_real >& log.compile
[scc@node1 WRF-4.7.1]$ cat log.compile
-bash: ./compile: 无法执行：找不到需要的文件
# 发现 compile 为 csh 脚本，下载 csh
[scc@node1 WRF-4.7.1]$ sudo dnf install -y tcsh
[scc@node1 WRF-4.7.1]$ csh ./compile em_real >& log.compile
make: libwrfio_nf.a: 没有那个文件或目录
make: *** [makefile:20：libwrfio_nf.a] 错误 127
# 错误：说明没有 libwrfio_nf.a 文件（位于 WRF-4.7.1/external/io_netcdf），进行手动编译
[scc@node1 io_netcdf]$ make \
>   CC=gcc \
>   FC=mpif90 \
>   CFLAGS="-w -O3 -I/data/software/install/netcdf/c/4.9.3/include -I../ioapi_share" \
>   FFLAGS="-w -O2 -ffree-form -ffree-line-length-none -fallow-argument-mismatch -I/data/software/install/netcdf/c/4.9.3/include -I/data/software/install/netcdf/fortran/4.6.2/include -I../ioapi_share" \
>   LDFLAGS="-L/data/software/install/netcdf/fortran/4.6.2/lib -lnetcdff -L/data/software/install/netcdf/c/4.9.3/lib -lnetcdf" \
>   NETCDFPATH=/data/software/install/netcdf/c/4.9.3 \
>   all
# 打包，更新索引
[scc@node1 io_netcdf]$ ar cr libwrfio_nf.a wrf_io.o field_routines.o module_wrfsi_static.o
[scc@node1 io_netcdf]$ ranlib libwrfio_nf.a
# 重新 ./compile，成功
[scc@node1 WRF-4.7.1]$ csh ./compile em_real >& log.compile

在 log.compile 文件末尾你应当能看到类似如下的 log：4 个 exe 文件正确输出。
